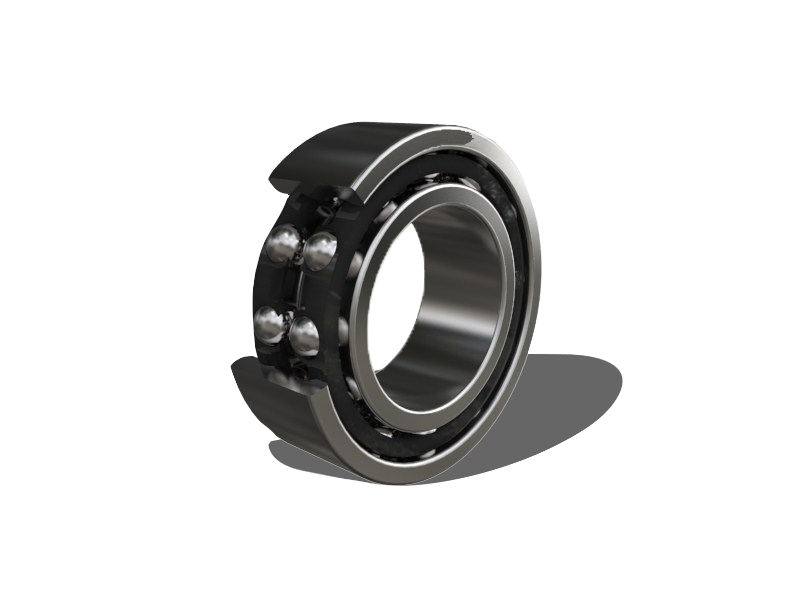

5300 Series

5310

Send Inquiry
PDF
  • 5300 Series
  • 5300 Series

Dimension and Parameters

Designation :5310

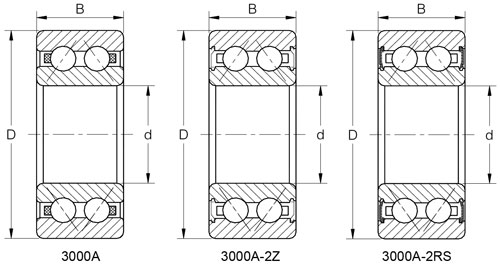

Principal dimensions(mm)
d :50
D :110
B :44.4
r(min) :2
Basic load ratings(KN)
Cr :81500
Cor :61500
Basic load ratings(kgf)
Cr :8300
Cor :6250
Limiting Speed (rpm)
Grease :4300
Oil :5600
Distance of action point
a0(mm) :55.6
Installation dimensions(mm)
da(min) :60
Da(max) :100
ra(max) :2
Weight
(kg) :1.95
