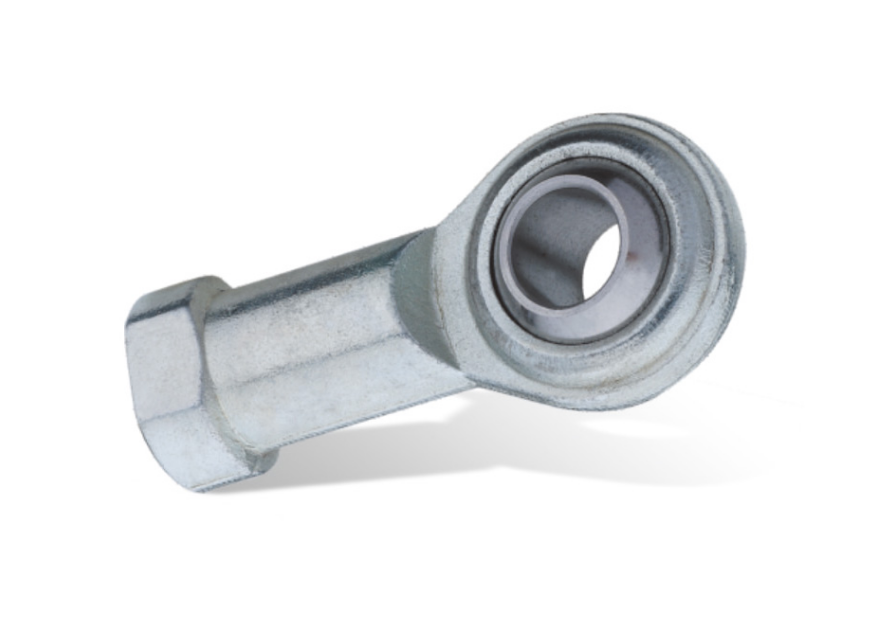

GIR12UK

Send Inquiry

PDF

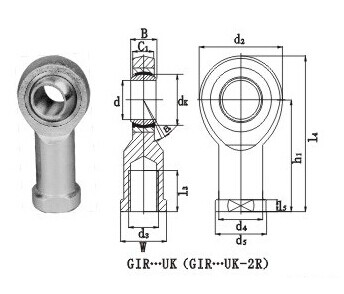

Dimension and Parameters

Bearing No. :GIR12UK

Boundary dimensions（mm）

d :12

d3 :M12

B :10

C1 max :8

d2 max :34

l3 min :23

W :19

d4 max :17.5

d5 max :22

l5 max :6.5

h1 :50

l4 max :67

dk :18

α· ≈ :11

Basic load ratings(kN)

Dynamic(Cr) :11.4

Static(Cor) :24.5

Mass

Kg :0.096
