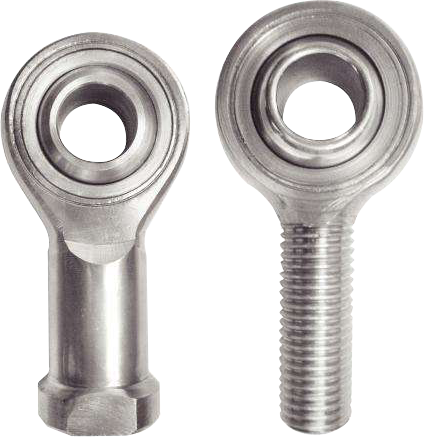

SCHS Series

SCHS5

Send Inquiry
PDF
  • SCHS Series
  • SCHS Series

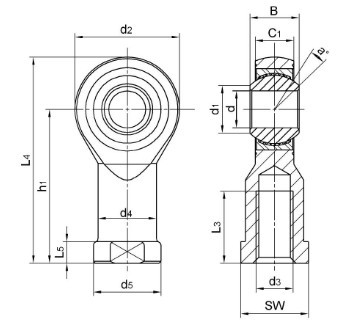

Dimension and Parameters

Bearing Designation :SCHS5
Dimensions mm
d  H7 :5
B :8
C1 :6
d1 :7.7
d2 :18
d3-6H :M5
h1 :27
L3 :10
(L4) :36
L5 :4
d4 :11
d5 :9
sw :11.11
Ball Diameter :13
Load Rating (KN)
Dynamic Load :3.2
Static load :8
Weight
≈Kg :0.016

EXPLORE OUR PRODUCT RANGE

Download our product overview table to get a complete insight into the solutions we provide across various industries.

Download Product Overview Table

If the size required is not available please get in touch to di
