ST 12

Send Inquiry

Model :ST 12

Maximum stroke(mm) :32

Number of rows :3

mm :12

Tolerance :1.69

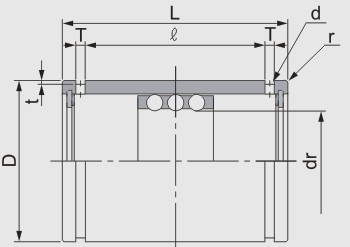

Major dimensions and tolerance

D mm :23

Tolerance(μm) :0/-13

L mm :32

Tolerance(μm) :0/-0.2

l mm :24.5

T mm :1.5

t (mm) :0.5

d(mm) :1.2

r :0.5

Basic load rating(kN)

Dynamic :1070

Static :813

Weight(Kg) :42
