Single-row Four Point Contact Ball Slewing Bearing with flange (Non- gear teeth type)

SD.750.20.00.C

Send Inquiry
PDF
  • Single-row Four Point Contact Ball Slewing Bearing with flange (Non- gear teeth type)
  • Single-row Four Point Contact Ball Slewing Bearing with flange (Non- gear teeth type)

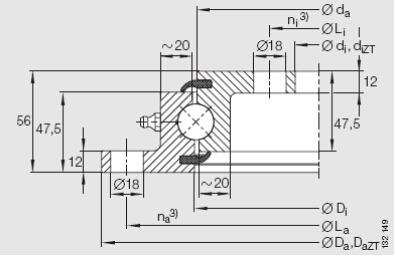

Dimension and Parameters

Designations :SD.750.20.00.C
Boundary Dimension （mm）
Da :748
Di :534
H :56
Bolt Hole Diameter （mm）
La :720
Li :562
na3) :12
ni3) :16
Weight
（Kg） :40
